90120-0763
Pin Header, Signal, 2.54 mm, 1 Rows, 3 Contacts, Through Hole Straight, C-Grid III 90120

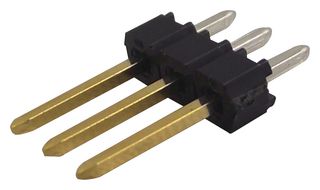

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No90120-0763
Order Code9733310
Product RangeC-Grid III 90120
Also Known AsGTIN UPC EAN: 800753716599
Your Part Number
Technical Datasheet
2,911 In Stock
Need more?
8 Next business day delivery available(Shanghai stock)
2903 Delivery in 5-6 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 10+ | CNY6.330 (CNY7.1529) |
| 100+ | CNY5.540 (CNY6.2602) |
| 500+ | CNY4.590 (CNY5.1867) |
| 1000+ | CNY4.110 (CNY4.6443) |
| 2000+ | CNY3.800 (CNY4.294) |
| 3000+ | CNY3.540 (CNY4.0002) |
Price for:Each
Minimum: 10
Multiple: 10
CNY63.30 (CNY71.53 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMOLEX
Manufacturer Part No90120-0763
Order Code9733310
Product RangeC-Grid III 90120
Also Known AsGTIN UPC EAN: 800753716599
Technical Datasheet
Connector SystemsSignal
Pitch Spacing2.54mm
No. of Rows1Rows
No. of Contacts3Contacts
Contact Termination TypeThrough Hole Straight
Product RangeC-Grid III 90120
Connector Shroud-
Contact MaterialBrass
Contact PlatingGold Plated Contacts
Connector Type-
SVHCNo SVHC (25-Jun-2025)
Product Overview
The 90120-0763 is a 3-way 1-row 2.54mm pitch vertical C-Grid III™ Header with gold-plated brass contacts. It mates with 90147 C-Grid® PC board connector and 90123 C-Grid III™ modular crimp housing. Headers will accept both discrete wire and ribbon cable connectors. The 90120 series header comes with black polyester resin and is ideal for signal and wire-to-board applications.
- Flexibility
- UL94V-0 flammability rating
- Maximum durability of 200 mating cycles
- Maximum current per contact is 3A
- Maximum voltage is 350VAC/DC
- Operating temperature range from -55 to 125°C
Applications
Commercial Vehicle, Consumer Electronics
Technical Specifications
Connector Systems
Signal
No. of Rows
1Rows
Contact Termination Type
Through Hole Straight
Connector Shroud
-
Contact Plating
Gold Plated Contacts
SVHC
No SVHC (25-Jun-2025)
Pitch Spacing
2.54mm
No. of Contacts
3Contacts
Product Range
C-Grid III 90120
Contact Material
Brass
Connector Type
-
Alternatives for 90120-0763
3 Products Found
Associated Products
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Indonesia
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Indonesia
Country in which last significant manufacturing process was carried out
Tariff No:85366930
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000717
