41612-32AB-MS

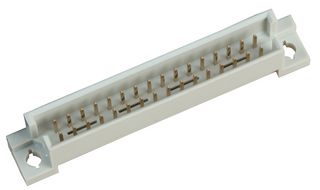

DIN 41612 Connector, 41612, 32 Contacts, Plug, 2.54 mm, 2 Row, a + b
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMULTICOMP PRO
Manufacturer Part No41612-32AB-MS
Order Code1661145
Your Part Number
Technical Datasheet
Available to Order
Notify me when back in stock
| Quantity | Price (inc GST) |
|---|---|
| 5+ | CNY18.760 (CNY21.1988) |
| 10+ | CNY14.120 (CNY15.9556) |
| 25+ | CNY11.560 (CNY13.0628) |
| 50+ | CNY10.900 (CNY12.317) |
| 100+ | CNY10.140 (CNY11.4582) |
Price for:Each
Minimum: 5
Multiple: 5
CNY93.80 (CNY105.99 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMULTICOMP PRO
Manufacturer Part No41612-32AB-MS
Order Code1661145
Technical Datasheet
SVHCNo SVHC (04-Feb-2026)
Product Overview
The 41612-32AB-MS is a 32-way 2-row 2.54mm DIN41612 Straight Plug with selective gold plated copper alloy contacts and PBT insulation. This DIN41612 standard plug has through hole vertical solder termination.
- 2A Rated current
- 250V Rated voltage
- 30mΩ Contact resistance
- 1000MΩ Insulation resistance
- -25 to +125°C Operating temperature range
- Multicomp Pro products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Applications
Industrial, Communications & Networking, Computers & Computer Peripherals, Consumer Electronics
Technical Specifications
SVHC
No SVHC (04-Feb-2026)
Technical Docs (1)
Alternatives for 41612-32AB-MS
1 Product Found
Associated Products
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (04-Feb-2026)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.004
