76-126

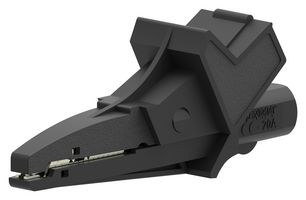

Crocodile Clip, Fully Insulated, 24.6 mm, 20 A, Black
Image is for illustrative purposes only. Please refer to product description.
64 In Stock
Need more?
64 Delivery in 5-6 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY40.220 (CNY45.4486) |
| 25+ | CNY38.270 (CNY43.2451) |
| 100+ | CNY36.430 (CNY41.1659) |
Price for:Each
Minimum: 1
Multiple: 1
CNY40.22 (CNY45.45 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMULTICOMP PRO
Manufacturer Part No76-126
Order Code3421727
Technical Datasheet
Current Rating20A
Jaw Opening Max24.6mm
Product Overview
The 76-126 is a 20A/1000V black Alligator Clip with fully insulated. The clip with polyamide body, nickel-plated brass contact. 4mm socket termination and 24.6mm maximum jaw opening with cable mounting.
- Category III safety
- <lt/>20mΩ Internal resistance
- -20 to 80°C Temperature range
- 12 month limited warranty *view Terms & Conditions for details
Applications
Industrial, Test & Measurement
Technical Specifications
Current Rating
20A
Jaw Opening Max
24.6mm
Technical Docs (2)
Alternatives for 76-126
2 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:90309000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.024948
