Print Page
MP002363

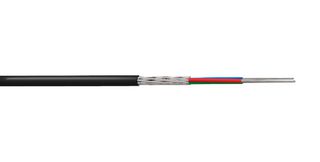

Multicore Cable, 7-2-4C, Screened, 4 Core, 0.22 mm², 328 ft, 100 m
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMULTICOMP PRO
Manufacturer Part NoMP002363
Order Code3372831
Product RangeDEF STAN 61-12 Part 4
Also Known As7-2-4C
Technical Datasheet
14 In Stock
125 more incoming. You can reserve stock now
14 Delivery in 5-6 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY966.290 (CNY1,091.9077) |
Price for:Reel of 1
Minimum: 1
Multiple: 1
CNY966.29 (CNY1,091.91 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMULTICOMP PRO
Manufacturer Part NoMP002363
Order Code3372831
Product RangeDEF STAN 61-12 Part 4
Also Known As7-2-4C
Technical Datasheet
Cable ShieldingScreened
No. of Cores4Core
Wire Gauge-
Conductor Area CSA0.22mm²
Reel Length (Imperial)328ft
Reel Length (Metric)100m
Jacket ColourBlack
No. of Max Strands x Strand Size7 x 0.2mm
Conductor MaterialTinned Copper
Jacket MaterialPVC
External Diameter4.4mm
Voltage Rating440V
Product RangeDEF STAN 61-12 Part 4
SVHCNo SVHC (21-Jan-2025)
Product Overview
These Multi-Core flexible cables are designed for high-density wiring between components within instruments and electronic equipment. They are extensively used in aircraft, process control systems, computers, data processors, military vehicles, and military equipment.
- Colour: Black
- Cable Identification Code: 7-2-4C
- No. of Cores: 4
- Nominal Thickness of Sheath: 0.45 mm
- Nominal Overall Diameter: 4.4 mm
- Nominal Weight: 28.84 kg/km
- Minimum Bending Radius, Fixed: 7.5 x overall diameter
- Defence Standard 61-12 Part 4
- Temperature Rating, Fixed: -30°C to + 70°C
Applications
Aerospace, Avionics, Control Panels, Construction, Communications & Networking, Electronics, Hobby & Education, Laboratory
Contents
Reel of 100m
Technical Specifications
Cable Shielding
Screened
Wire Gauge
-
Reel Length (Imperial)
328ft
Jacket Colour
Black
Conductor Material
Tinned Copper
External Diameter
4.4mm
Product Range
DEF STAN 61-12 Part 4
No. of Cores
4Core
Conductor Area CSA
0.22mm²
Reel Length (Metric)
100m
No. of Max Strands x Strand Size
7 x 0.2mm
Jacket Material
PVC
Voltage Rating
440V
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85444995
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):3.42
