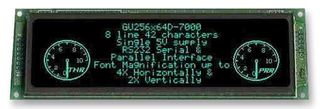

GU256X64D-7000
VFD Display, Dot Matrix, 256 x 64, 28.65mm x 115.05mm, Parallel / RS-232, , 4.75 V to 5.25 V
Need more?
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY990.350 (CNY1,119.0955) |
Product Information
Product Overview
The GU256X64D-7000 is a Dot Graphic VFD Module include the vacuum fluorescent display glass, VF drivers and micro-controller ICs with refresh RAM, character generator and interface logic. The high speed 8-bit parallel interface is 5V TTL/CMOS compatible suitable for connection to a host CPU bus. The asynchronous serial interface accepts baud rates up to 115200 with none parity. The module is ready to receive ASCII characters without initialization commands. The 7000/7003 versions have firmware offering 4 user definable window areas and support multi-size international fonts. Scroll and flash with graphic upload functions.
- 256 x 64 Dot graphic
- High brightness blue green display
- -20 to 70°C Operating temperature range
- 11 multi sized fonts
- High speed 8-bit parallel interface
- Asynchronous RS232 serial interface
- Economic low profile modules
- Scroll + image + fill commands
Applications
Imaging, Video & Vision, Communications & Networking
Technical Specifications
256 x 64
Dot Graphic
5.25V
-20°C
Parallel, RS-232
No SVHC (17-Dec-2014)
28.65mm x 115.05mm
4.75V
-
70°C
-
