KIT34845EPEVME

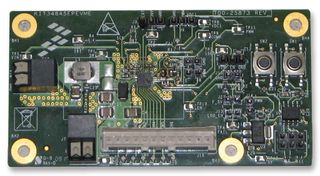

This Evaluation board shows the functionality of MC34845 set up under specific operation parameters. MC34845 which is a high efficiency, LED driver for use in backlighting LCD displays from 10" to 17"+ can operate in this demo board from a supply of 5V, the device is capable of driving up to 96 LEDs in 6 parallel strings. The current through these 6 channels is matched to within ±2%. For evaluation purposes this Demo Board includes a simple MCU that allows control of the light dimming of the LEDs as well as the PWM frequency from 200Hz to 26.5kHz.

• Four Layer Board
• Low Noise Design
• Top Layer Placement
• Connector for the 6 LED channels
• OTP, OCP, UVLO fault detection
• LED short/open protection
• Programmable LED current between 3mA and 30mA

Applications

LED Lighting, Embedded Design & Development, Medical, Industrial

Contents

Assembled and tested evaluation board/module in anti-static bag, CD-ROM.
