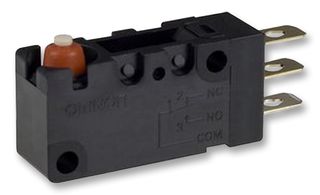

D2VW-5L3-1MS
Microswitch, Snap Action, Simulated Roller Lever, SPDT-1NO / 1NC, Quick Connect, Solder, 5 A
315 In Stock
Need more?
315 Delivery in 5-6 Business Days(US stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY112.680 (CNY127.3284) |
| 5+ | CNY105.700 (CNY119.441) |
| 10+ | CNY98.720 (CNY111.5536) |
| 20+ | CNY87.770 (CNY99.1801) |
| 50+ | CNY81.360 (CNY91.9368) |
Price for:Each
Minimum: 1
Multiple: 1
CNY112.68 (CNY127.33 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerOMRON
Manufacturer Part NoD2VW-5L3-1MS
Order Code1608291
Product RangeD2VW
Also Known AsD2VW-5L3-1MS(D)(), D2VW2250A
Technical Datasheet
Microswitch TypeSnap Action
Microswitch ActuatorSimulated Roller Lever
Contact ConfigurationSPDT-1NO / 1NC
Switch TerminalsQuick Connect, Solder
Contact Current Max5A
Contact Voltage DC Nom250VDC
Product RangeD2VW
Contact Voltage AC Nom250VAC
Operating Force Max120gf
SVHCNo SVHC (17-Dec-2014)
Product Overview
The D2VW-5L3-1MS is a single-pole double-throw (SPDT) sealed Snap Action Switch with simulated roller lever and molded lead wires. This high-quality watertight high-precision miniature snap action switch body meets IP67 requirements. The use of epoxy resin assures high sealing capability is ideal for dusty places or where water is sprayed. The V-series internal mechanism assures high precision and long life.
- 100mΩ Maximum contact resistance
- 100MΩ at 500VDC Minimum insulation resistance
- IEC IP67 Protection rating
- 1000VAC 50/60Hz for 1 minute between terminals of the same polarity Dielectric strength
Applications
Industrial
Notes
Prevent the switch from coming into contact with oil and chemicals. Otherwise, damage and deterioration to the switch materials may occur.
Technical Specifications
Microswitch Type
Snap Action
Contact Configuration
SPDT-1NO / 1NC
Contact Current Max
5A
Product Range
D2VW
Operating Force Max
120gf
Microswitch Actuator
Simulated Roller Lever
Switch Terminals
Quick Connect, Solder
Contact Voltage DC Nom
250VDC
Contact Voltage AC Nom
250VAC
SVHC
No SVHC (17-Dec-2014)
Technical Docs (2)
Associated Products
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85365007
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Dec-2014)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.018144
