32300

The 32300 is a Propeller Starter Kit, everything you need to program a Propeller chip except for the PC and power supply. Parallax recommends a 7.5V 1A power supply (#750-00009). The Propeller demo board, Rev C. visibly demonstrates the Propeller's varied capabilities in a compact and fun platform. You can use it to learn Propeller programming and then develop full-blown applications which generate video and sound and utilize mice and keyboards. All the requisite power supply and USB loading circuitry is provided for you. Eight unused I/O pins are available for experimentation.

Applications

Embedded Design & Development

Contents

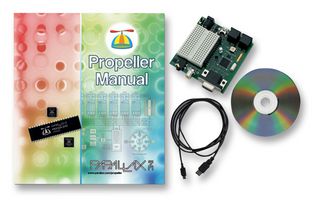

Propeller manual, Propeller demo board and USB A to Mini B retractable cable.

Notes

A Propeller P8X32A-Q44 chip is mounted to the board. All you need to do is plug it in to start programming.
