R284C0351066

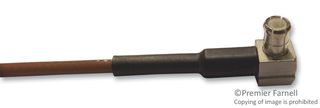

RF / Coaxial Cable Assembly, 90° MCX Plug to 90° MCX Plug, RG178, 50 ohm, 9.84 ", 250 mm, Brown
Image is for illustrative purposes only. Please refer to product description.
48 In Stock
Need more?
48 Delivery in 5-6 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY371.670 (CNY419.9871) |
| 100+ | CNY302.770 (CNY342.1301) |
Price for:Each
Minimum: 1
Multiple: 1
CNY371.67 (CNY419.99 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Overview
The R284C0351066 is a 0.25m RG178 RF/Coaxial Cable Assembly with crimp type MCX right angle plugs and brown jacket. It features 0.87dB maximum at 3GHz and 20°C insertion loss, 7mm recommended minimum bend radius and 500 cycles life.
- 1000MΩ Minimum insulation resistance
- 170Veff Maximum voltage rating
- -55 to 155°C Operating temperature range
Applications
RF Communications
Technical Specifications
Connector to Connector
90° MCX Plug to 90° MCX Plug
Impedance
50ohm
Cable Length - Metric
250mm
Product Range
-
Coaxial Cable Type
RG178
Cable Length - Imperial
9.84"
Jacket Colour
Brown
SVHC
Lead (27-Jun-2024)
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85442000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead (27-Jun-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.005
