D-200-82
Butt Splice, Red, Mini Seal, 26 AWG, 20 AWG, 0.6 mm², Fluoropolymer
Need more?
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY86.240 (CNY97.4512) |
| 10+ | CNY75.460 (CNY85.2698) |
| 25+ | CNY62.520 (CNY70.6476) |
| 100+ | CNY56.060 (CNY63.3478) |
| 250+ | CNY51.740 (CNY58.4662) |
| 500+ | CNY51.500 (CNY58.195) |
Product Information
Product Overview

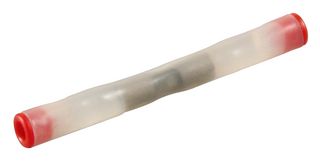

The D-200-82 is a Butt Splice Terminal made of copper alloy 101 or 102 per ASTM B75 with nickel plated (as per SAE AMS-QQ-N-290) finish. This closed barrel splice features a red heat shrink radiation-cross-linked modified fluoropolymer insulator. It provides sealing to unetched wire insulations, No need to staffer wire splice. Transparent heat-shrinkable insulation sleeve provides environmental protection and strain relief. The 200°C MiniSeal high-performance immersion-resistant crimp splice provides the smallest, lightest and the most environmental-resistant splice available, while meeting all requirements of SAE-AS81824/1 (modified for 200°C applications). It accepts 26 to 20AWG wire.
- Small size
- Lightweight
- 2.5kV Dielectric strength
- 5000MΩ Insulation resistance
- -55 to 200°C Temperature range
Applications
Aerospace, Defence, Military, Industrial
Technical Specifications
Red
26AWG
0.6mm²
No SVHC (27-Jun-2024)
Mini Seal
20AWG
Fluoropolymer
Technical Docs (3)
Legislation and Environmental
Country in which last significant manufacturing process was carried outCountry of Origin:Mexico
Country in which last significant manufacturing process was carried out
RoHS
RoHS
Product Compliance Certificate
