ANT-GSMQB-MMCX

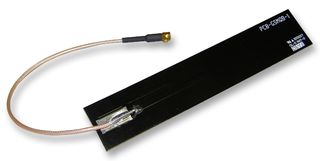

Antenna, GSM, Quad Band, 150mm MMCX
Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 17 week(s)
Notify me when back in stock
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY80.650 (CNY91.1345) |
| 5+ | CNY65.940 (CNY74.5122) |
| 10+ | CNY51.230 (CNY57.8899) |
| 50+ | CNY51.000 (CNY57.630) |
| 100+ | CNY50.780 (CNY57.3814) |
| 250+ | CNY50.560 (CNY57.1328) |
Price for:Each
Minimum: 1
Multiple: 1
CNY80.65 (CNY91.13 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerRF SOLUTIONS
Manufacturer Part NoANT-GSMQB-MMCX
Order Code1330089
Technical Datasheet
Antenna TypeGSM
Frequency Min850MHz
Frequency Max1.9GHz
Antenna MountingCable
Gain1dB
VSWR2
Input Power10W
Input Impedance50ohm
Antenna PolarisationLinear
Product Range-
SVHCNo SVHC (27-Jun-2024)
Product Overview
- High performance GSM mini quad band PCB antenna with 90° MMCX connector
- 10cm RG178 connecting lead
- Ground plane independent
- Operates from 2.7V to 5.5V
Applications
Wireless
Technical Specifications
Antenna Type
GSM
Frequency Max
1.9GHz
Gain
1dB
Input Power
10W
Antenna Polarisation
Linear
SVHC
No SVHC (27-Jun-2024)
Frequency Min
850MHz
Antenna Mounting
Cable
VSWR
2
Input Impedance
50ohm
Product Range
-
Technical Docs (1)
Associated Products
2 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Tariff No:85177900
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.02
