RB-D62Q1577TB100
Reference Board Kit, ML62Q1577, 16Bit, nX-U16/100, General Purpose Microcontroller

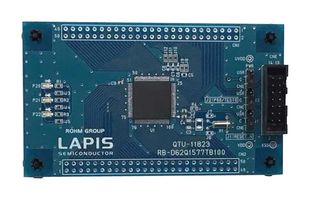

Image is for illustrative purposes only. Please refer to product description.
2 In Stock
Need more?
2 Delivery in 5-6 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY337.800 (CNY381.714) |
Price for:Each
Minimum: 1
Multiple: 1
CNY337.80 (CNY381.71 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerROHM
Manufacturer Part NoRB-D62Q1577TB100
Order Code4566837
Technical Datasheet
Silicon ManufacturerRohm Semiconductor
Silicon Core NumberML62Q1577
Kit Application TypeMicrocontroller
Application Sub TypeGeneral Purpose Microcontroller
Core ArchitecturenX-U16/100
Core Sub-Architecture-
Silicon Family NameML62Q1000
Kit ContentsReference Board ML62Q1577, User Manual
Product Range-
SVHCNo SVHC (27-Jun-2024)
Product Overview
RB-D62Q1577TB100 is a ML62Q1577 reference board. It can be used for learning how to use the ML62Q1577, on which adding external user components if necessary. Using ML62Q1577 reference board with LAPIS Semiconductor’s on-chip emulator EASE1000 delivered with the software development environments, help user’s software development and debugging and programming the Flash.
- Board is populated with ML62Q1577 100pin TQFP package
- Connector linked to EASE1000 is mounted
- Through-holes for connecting the pins of LSI to external peripheral boards
- The power supply is selectable, supplied from the on-chip emulator EASE1000 or CN1-3pin / CN2-2pin
- LED is mounted (P20, P21, P22)
- Crystal is mounted (32.768KHz)
- Operating voltage range from +1.6 to +5.5V (supply VDD with up to 1.8V or higher during power up)
- Board size is 55.88mm x 93.98mm
