101020713

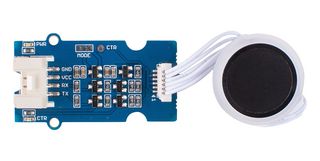

Grove - Capacitive Fingerprint Scanner / Sensor is based on the KCT203 Semiconductor fingerprint recognition module, including a high-performance MCU, a vertical RF push-type fingerprint sensor, and a touch sensing device. This module features many advantages such as small size, small fingerprint template, low power consumption, high reliability, fast fingerprint recognition, etc. In addition, it is worth mentioning that there is a lovely RGB light around this module to indicate whether the fingerprint recognition is successful.

• Built-in 2KByte storage: support up to 100 fingerprints
• Powerful self-learning function: the more you use, the more accurate the recognition
• Selectable security level
• Small size, low power consumption, 10uA for standby mode

Contents

KCT203 semiconductor fingerprint recognition module x1, Sensor cable x1, Grove cable x1, Grove driver board x1.
