MK20/2-B-100W
Reed Switch, MK20 Series, Cylindrical, SPST-NO, 3 W, 30 Vdc, 0.3 A, 50 to 110 AT

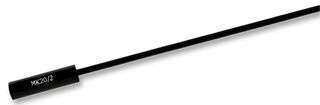

Image is for illustrative purposes only. Please refer to product description.
ManufacturerSTANDEXMEDER
Manufacturer Part NoMK20/2-B-100W
Order Code2453611
Product RangeMK20 Series
Technical Datasheet
59 In Stock
Need more?
59 Delivery in 5-6 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY39.250 (CNY44.3525) |
| 10+ | CNY35.370 (CNY39.9681) |
| 25+ | CNY32.070 (CNY36.2391) |
| 50+ | CNY31.330 (CNY35.4029) |
| 100+ | CNY30.590 (CNY34.5667) |
| 500+ | CNY30.270 (CNY34.2051) |
Price for:Each
Minimum: 1
Multiple: 1
CNY39.25 (CNY44.35 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerSTANDEXMEDER
Manufacturer Part NoMK20/2-B-100W
Order Code2453611
Product RangeMK20 Series
Technical Datasheet
Sensor TypeReed Switch
Sensing Distance Max-
Sensor MountingPanel Mount
Supply Current300mA
Operating Temperature Min-30°C
Operating Temperature Max80°C
Product RangeMK20 Series
Product Overview
The MK20 series miniature (3.0mm) panel mount Reed Sensor is supplied in a cylindrically shaped housing with cable terminals. The series features optional cable, length and termination.
- 10W Rated power (maximum)
- 0.5A Switching current maximum
- 200mΩ Contact resistance (maximum)
- 0.05ms Release time
- 109Ω Insulation resistance
- 1A (SPST) (N.O.) Contact form
Applications
Sensing & Instrumentation, Industrial, Security
Technical Specifications
Sensor Type
Reed Switch
Sensor Mounting
Panel Mount
Operating Temperature Min
-30°C
Product Range
MK20 Series
Sensing Distance Max
-
Supply Current
300mA
Operating Temperature Max
80°C
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:90318080
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.00029
