14.0048C1-22

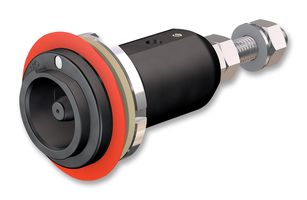

14.0048C1-22 is a 10BV series panel receptacle socket connector with threaded connection M10. It is designed for use in the low-voltage range of temporary power supply, as well as for emergency power suppliers or in industrial environments such as plants, aggregates, or test fields. Due to its robust design and reliable safety features, this is ideally suited in particular for applications with high requirements under harsh conditions. The compact dimensions ensure user-friendly operation as well as space savings when integrated into device. It is in compliance with IEC 60664-1, IEC 60529, IEC 60512-5-2, IEC 61238-1-1, IEC 61984.

• Robustness and longevity, coloured and mechanical coding increase safety
• Patented bayonet locking makes it easier to connect and disconnect
• Rated voltage is 1000V AC/1500V DC (IEC)
• 250A rated current (IEC)
• Temperature range from -40°C to +90°C
• PA insulation material, CuZn (AG) metal part
• Contact resistance is ≤ 40µohm
• Rated impulse voltage is 8kV at 1.2μs/50μs
• Up to 5000 mating cycles
