STEVAL-ILL035V2
Evaluation Board, LED7708 Multi-channel LED Driver, PWM Dimming, 16 Output

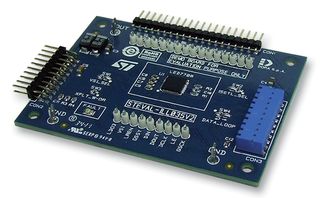

Image is for illustrative purposes only. Please refer to product description.
ManufacturerSTMICROELECTRONICS
Manufacturer Part NoSTEVAL-ILL035V2
Order Code2308961
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 29 week(s)
Notify me when back in stock
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY484.430 (CNY547.4059) |
Price for:Each
Minimum: 1
Multiple: 1
CNY484.43 (CNY547.41 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerSTMICROELECTRONICS
Manufacturer Part NoSTEVAL-ILL035V2
Order Code2308961
Technical Datasheet
Device TopologyBoost
No. of Outputs16Outputs
Output Current85mA
Output Voltage-
Input Voltage Min10V
Input Voltage Max28V
Core ChipLED7708
Dimming Control TypePWM
Kit ContentsEval Board LED7708
Product Range-
SVHCNo SVHC (21-Jan-2025)
Product Overview
Daughter card or extension card for STEVAL-ILL035V1. The STEVAL-ILL035V1 is multichannel LED driver evaluation board based on LED7708 16 channel led driver and STM32F103C6T6A (AEM Cortex-M3 Microcontroller). The STEVAL-ILL035V2 is an extension card for STEVAL-ILL035V1 and enables implementing a daisy-chained configuration for applications requiring more than 16 channels.
- Wide DC input voltage range from 10V to 28V
- 16-channels with up to 85mA/channel current capability and independent PWM brightness control
- Up to 15 white LEDs per channel
- Embedded open-channel and LED short-circuit faults management
- Expansion connector to cascade other STEVAL-ILL035V2 evaluation boards
