STEVAL-LLL008V1
EVAL BOARD, LED DRIVER

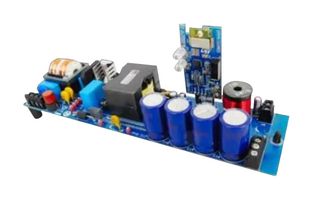

Image is for illustrative purposes only. Please refer to product description.
ManufacturerSTMICROELECTRONICS
Manufacturer Part NoSTEVAL-LLL008V1
Order Code3489481
Technical Datasheet
2 In Stock
Need more?
2 Delivery in 5-6 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY1,293.350 (CNY1,461.4855) |
Price for:Each
Minimum: 1
Multiple: 1
CNY1,293.35 (CNY1,461.49 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerSTMICROELECTRONICS
Manufacturer Part NoSTEVAL-LLL008V1
Order Code3489481
Technical Datasheet
Device TopologyBuck
No. of Outputs1Outputs
Output Current1.4A
Output Voltage70V
Input Voltage Min90VAC
Input Voltage Max265VAC
Core ChipHVLED001B, HVLED002
Dimming Control Type-
Kit ContentsEval Board HVLED001B/HVLED002,STSW-LLL008FW Firmware
Product Range-
SVHCNo SVHC (21-Jan-2025)
Product Overview
- 100W high efficiency and low THD dimmable LED driver reference design
- Based on HVLED001B, HVLED002 and SPSGRFC
- Input voltage range from 90VAC to 265VAC
- High power factor PSR-CV and CC step-down
- Sub-1Ghz connectivity for 6LoWPAN Mesh network
- Output voltage range 40V to 70V
- Maximum current 1.4A with less then 100mA current ripple
- Maximum output power 100W
- Standby power consumption 265VIN AC without control board <lt/> 0.3W, with control board <lt/>0.6 W
Contents
Eval board HVLED001B/HVLED002, STSW-LLL008FW firmware.
Notes
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
