FS-06
Flow Switch, FS Series, 22 mm Port Size, 10 bar, SPST-NO, 250 Vac, 1 A

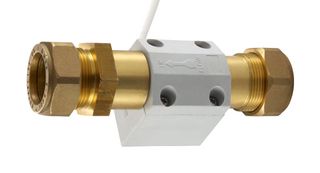

Image is for illustrative purposes only. Please refer to product description.
ManufacturerTE CONNECTIVITY
Manufacturer Part NoFS-06
Order Code1006771
Also Known As86514-000 , FFS-06
Technical Datasheet
No Longer Manufactured
Product Information
ManufacturerTE CONNECTIVITY
Manufacturer Part NoFS-06
Order Code1006771
Also Known As86514-000 , FFS-06
Technical Datasheet
Flow Switch TypeSPST
Flow Rate Max-
Operating Pressure Min-
Operating Pressure Max10bar
Contact Rating1A
Switching Voltage AC Max250V
Switching Voltage DC Max200V
Media Type0
Process Connection Size-
Process Connection Type-
Pipe Size-
Housing MaterialBrass
Qualification-
SVHCTo Be Advised
Product Overview
The FS-06 is a Flow Switch with rugged brass housing, NORYL shuttle and ruthenium SPST contact. This flow switch features as minimum pressure drop, operates from a small head of water and vertical mount +/15. Suitable for water and air flow switching, mains water control, power shower, central heating systems, circulation pump protection and cooling systems.
- Easy to install
- Vertical, flow upwards
- 22mm Compression fitting
- IP65 Protection rating
- -30 to 100°C Operating temperature range
Applications
Sensing & Instrumentation, Motor Drive & Control, HVAC
Technical Specifications
Flow Switch Type
SPST
Operating Pressure Min
-
Contact Rating
1A
Switching Voltage DC Max
200V
Process Connection Size
-
Pipe Size
-
Qualification
-
Flow Rate Max
-
Operating Pressure Max
10bar
Switching Voltage AC Max
250V
Media Type
0
Process Connection Type
-
Housing Material
Brass
SVHC
To Be Advised
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Tariff No:90261089
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.349
