TIW 12-124
AC/DC Enclosed Power Supply (PSU), ITE & Household, 1 Outputs, 12 W, 24 VDC, 500 mA
Need more?
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY305.360 (CNY345.0568) |
| 10+ | CNY283.540 (CNY320.4002) |
| 25+ | CNY274.400 (CNY310.072) |
| 50+ | CNY265.250 (CNY299.7325) |
| 100+ | CNY256.180 (CNY289.4834) |
Product Information
Product Overview

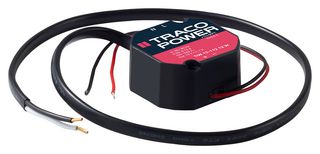

The TIW 12-124 is a 24V/12W DC Power Supply with fully encapsulated plastic housing, which has been designed particularly for applications in home and office installations. The compact modules cases fit in the standardized in-wall flush boxes. The TIW-series is a new range of small size, connection there are models available with flying wires. The power supplies comply fully with the safety and EMC standards requested for commercial and residential class-II installations. Typical applications are powering of electric devices used in home automation and in security systems like i.e. DC-motors, controllers, indicators, etc.
- Universal input
- High efficiency
- Easy installation into standard flush box
- Dust-proof and waterproof to IP67
- Protection class-II
- -25 to 50°C Operating temperature range
Applications
Building Automation, Security, Motor Drive & Control, Automation & Process Control, Commercial
Technical Specifications
ITE & Household
12W
500mA
-
-
-
Fixed
No SVHC (14-Jun-2023)
1Outputs
24VDC
-
-
-
93V AC to 264V AC
TIW 12 Series
