LR03-L05M.

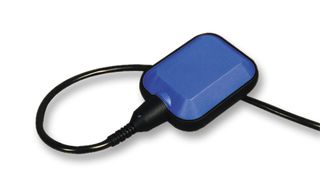

Float Switch, LR03 Series, Non Mercury, Polypropylene, SPDT, 250 V, 15 A, 5 m Cable
Need more?
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY133.090 (CNY150.3917) |
| 10+ | CNY130.830 (CNY147.8379) |
| 25+ | CNY127.730 (CNY144.3349) |
| 50+ | CNY124.870 (CNY141.1031) |
| 100+ | CNY122.340 (CNY138.2442) |
| 500+ | CNY119.740 (CNY135.3062) |
| 1000+ | CNY119.220 (CNY134.7186) |
Product Information
Product Overview
The LR03 series Float switches, efficient liquid level detectors. They are simple to install and designed for trouble free operation over a long life. Actuation is via a roller ball and micro-switch arrangement within the switch thereby eliminating all heavy metals from this type. The float chamber houses the micro-switch arrangement, totally sealed within a polypropylene casing, with a single pole double throw action. The three-cored cable, connected to the micro-switch assembly inside the float chamber, is sheathed in CPE (chlorinated polyethylene) synthetic rubber. This cable is 5 metres ±5%. The optional stabilizing weight may be fixed at any point on the cable using the rubber O-ring supplied. The weight is sealed within a moulded polypropylene housing.
- 20m Maximum submerged depth
- 482KN/m² Compressive strength
- Operation in specific gravities from 0.9 to 1.3
Applications
Sensing & Instrumentation, Industrial
Technical Specifications
15A
70°C
-
LR03 Series
Technical Docs (1)
Associated Products
2 Products Found
Legislation and Environmental
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
RoHS
RoHS
Product Compliance Certificate
