BIM-UNT-AP6X

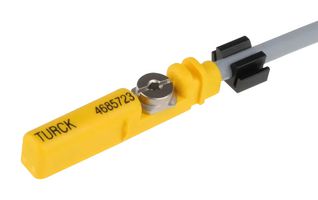

Magnetic Field Sensor, Rectangular, 10V to 30V, 4 Pin
Image is for illustrative purposes only. Please refer to product description.
8 In Stock
Need more?
8 Delivery in 5-6 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY683.160 (CNY771.9708) |
| 5+ | CNY669.500 (CNY756.535) |
| 10+ | CNY655.840 (CNY741.0992) |
| 25+ | CNY642.180 (CNY725.6634) |
| 50+ | CNY628.510 (CNY710.2163) |
| 100+ | CNY614.850 (CNY694.7805) |
Price for:Each
Minimum: 1
Multiple: 1
CNY683.16 (CNY771.97 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerTURCK
Manufacturer Part NoBIM-UNT-AP6X
Order Code4284569
Technical Datasheet
Supply Voltage Min10VDC
Supply Voltage DC Min10V
Supply Voltage DC Max30V
Supply Voltage Max30VDC
Sensor HousingRectangular
No. of Pins-
Output Current-
Sensor Output TypePNP
IP RatingIP68
Product Range-
SVHCNo SVHC (20-Jun-2016)
Product Overview
BIM-UNT-AP6X is a magnetic field sensor. It is activated by magnetic fields and is used, in particular, for the detection of the piston position in pneumatic cylinders. As magnetic fields can permeate non-magnetizable metals, it detects a permanent magnet attached to the piston through the aluminium cylinder wall.
- ≤ 10m/s pass speed, ≤ ±0.1mm repeatability
- ≤ 0.1mm temperature drift, ≤ 1mm hysteresis
- 10 to 30VDC operating voltage, ≤ 150mA DC rated operational current
- 15mA no load current, ≤ 0.1mA residual current
- ≤ 0.5KV isolation test voltage, 3-wire, NO contact, PNP output function
- 1KHz switching frequency, rectangular, UNT design
- Plastic, PP housing material, cable electrical connection
- Dimension is 28 x 5 x 6mm, IP68 protection class
- Operating ambient temperature range from -25°C to +70°C
