3,453 In Stock
Need more?
1655 Next business day delivery available(Shanghai stock)
1798 Delivery in 5-6 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY14.100 (CNY15.933) |
| 10+ | CNY13.820 (CNY15.6166) |
| 25+ | CNY13.540 (CNY15.3002) |
| 50+ | CNY11.280 (CNY12.7464) |
| 100+ | CNY11.040 (CNY12.4752) |
| 500+ | CNY10.790 (CNY12.1927) |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
CNY14.10 (CNY15.93 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.

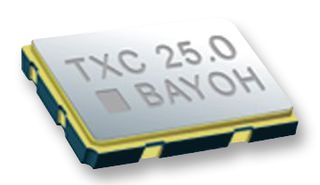

Product Information
ManufacturerTXC
Manufacturer Part No7C-24.000MBB-T
Order Code1842027
Product Range7C
Technical Datasheet
Frequency Nom24MHz
Frequency Stability + / -50ppm
Oscillator CaseSMD, 5mm x 3.2mm
Supply Voltage Nom3.3V
Product Range7C
Operating Temperature Min-40°C
Operating Temperature Max85°C
Oscillator Output CompatibilityCMOS
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 7C series SMD CMOS Clock Crystal Oscillator Unit (CXO) operating at a frequency range of 1 to 150MHz with ±50PPM frequency stability. It is suitable for use in wireless communication set, PDA and DSC applications.
- Ultra small SMD seam sealed clock crystal oscillator units
- High precision characteristic covering up to wide frequency range
- Designed for automatic mounting and reflow soldering
- Optional stand-by function for tri-state output
- 1.8 to 5.0V Supply voltage range
- High stability, low jitter, low power consumption
Applications
Wireless, Industrial
Technical Specifications
Frequency Nom
24MHz
Oscillator Case
SMD, 5mm x 3.2mm
Product Range
7C
Operating Temperature Max
85°C
SVHC
No SVHC (21-Jan-2025)
Frequency Stability + / -
50ppm
Supply Voltage Nom
3.3V
Operating Temperature Min
-40°C
Oscillator Output Compatibility
CMOS
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:85416000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.001814
