ETP-TP-B-2-5-23-10K3A1B

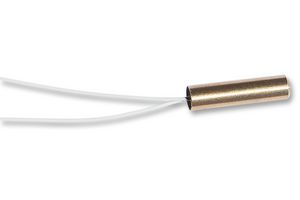

Temperature Sensor, Cylindrical, 20 mm x 5 mm Diameter, 10K3A1B Thermistor
Image is for illustrative purposes only. Please refer to product description.
ManufacturerVARIOHM GROUP
Manufacturer Part NoETP-TP-B-2-5-23-10K3A1B
Order Code2362666
Technical Datasheet
3 In Stock
Need more?
3 Delivery in 5-6 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY210.670 (CNY238.0571) |
| 5+ | CNY188.400 (CNY212.892) |
| 10+ | CNY183.720 (CNY207.6036) |
| 25+ | CNY181.470 (CNY205.0611) |
| 50+ | CNY180.340 (CNY203.7842) |
| 100+ | CNY179.710 (CNY203.0723) |
| 500+ | CNY179.080 (CNY202.3604) |
Price for:Each
Minimum: 1
Multiple: 1
CNY210.67 (CNY238.06 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerVARIOHM GROUP
Manufacturer Part NoETP-TP-B-2-5-23-10K3A1B
Order Code2362666
Technical Datasheet
Sensing Temperature Min-40°C
RTD TypeProbe with Leads
Sensing Temperature Max125°C
RTD Accuracy-
Measured Temperature Min-40°C
Resistance10kohm
Measured Temperature Max125°C
Resistance @ 0°C10kohm
RTD Element Material-
Probe MaterialBrass
Probe Diameter-
Probe Length20mm
Cable Length - Metric230mm
Cable Length - Imperial9.1"
Cable TerminationWire Leaded
Wire Configuration2-Wire
Product Range-
SVHCNo SVHC (23-Jan-2024)
Product Overview
The ETP-TP-B-2-5-23-10K3A1B is a brass Tubular Sensor with 28AWG solid silver-plated copper leads with white Kynar insulation.
- Miniature design with 5mm OD
- General instrumentation temperature probe in brass housing
- High temperature range
- Solid tin plated lead wires
- Improved potting epoxy has outstanding thermal conductivity for faster response times
- Resistance values from 2.2 to 100kΩ
Applications
HVAC, Sensing & Instrumentation
Technical Specifications
Sensing Temperature Min
-40°C
Sensing Temperature Max
125°C
Measured Temperature Min
-40°C
Measured Temperature Max
125°C
RTD Element Material
-
Probe Diameter
-
Cable Length - Metric
230mm
Cable Termination
Wire Leaded
Product Range
-
RTD Type
Probe with Leads
RTD Accuracy
-
Resistance
10kohm
Resistance @ 0°C
10kohm
Probe Material
Brass
Probe Length
20mm
Cable Length - Imperial
9.1"
Wire Configuration
2-Wire
SVHC
No SVHC (23-Jan-2024)
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Tariff No:90258040
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (23-Jan-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.003
