IHLP7575GZERR56M5A
Power Inductor (SMD), 0.56 µH, 61 A, Shielded, 101 A, IHLP-7575GZ-5A Series

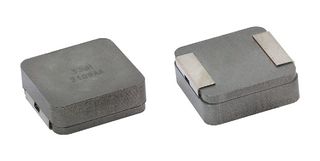

Image is for illustrative purposes only. Please refer to product description.
ManufacturerVISHAY
Manufacturer Part NoIHLP7575GZERR56M5A
Order Code3778730
Product RangeIHLP-7575GZ-5A Series
Technical Datasheet
190 In Stock
Need more?
190 Delivery in 5-6 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY40.230 (CNY45.4599) |
| 10+ | CNY26.330 (CNY29.7529) |
| 100+ | CNY25.820 (CNY29.1766) |
| 200+ | CNY25.750 (CNY29.0975) |
| 400+ | CNY24.950 (CNY28.1935) |
| 1000+ | CNY23.190 (CNY26.2047) |
Price for:Each
Minimum: 1
Multiple: 1
CNY40.23 (CNY45.46 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerVISHAY
Manufacturer Part NoIHLP7575GZERR56M5A
Order Code3778730
Product RangeIHLP-7575GZ-5A Series
Technical Datasheet
Inductance0.56µH
RMS Current (Irms)61A
Inductor ConstructionShielded
Saturation Current (Isat)101A
Product RangeIHLP-7575GZ-5A Series
Inductor Case / Package-
DC Resistance Max0.00109ohm
Inductance Tolerance± 20%
Product Length19.1mm
Product Width19.05mm
Product Height7mm
SVHCNo SVHC (07-Nov-2024)
Technical Specifications
Inductance
0.56µH
Inductor Construction
Shielded
Product Range
IHLP-7575GZ-5A Series
DC Resistance Max
0.00109ohm
Product Length
19.1mm
Product Height
7mm
RMS Current (Irms)
61A
Saturation Current (Isat)
101A
Inductor Case / Package
-
Inductance Tolerance
± 20%
Product Width
19.05mm
SVHC
No SVHC (07-Nov-2024)
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85045000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (07-Nov-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.014115
