VS-C20ET07T-M3

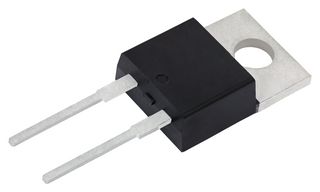

Silicon Carbide Schottky Diode, Single, 650 V, 20 A, 68 nC, TO-220AC
Image is for illustrative purposes only. Please refer to product description.
550 In Stock
Need more?
550 Delivery in 5-6 Business Days(UK stock)
Available until stock is exhausted
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY50.580 (CNY57.1554) |
| 5+ | CNY46.980 (CNY53.0874) |
| 10+ | CNY43.370 (CNY49.0081) |
| 50+ | CNY39.710 (CNY44.8723) |
| 100+ | CNY36.040 (CNY40.7252) |
| 250+ | CNY34.590 (CNY39.0867) |
Price for:Each
Minimum: 1
Multiple: 1
CNY50.58 (CNY57.16 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerVISHAY
Manufacturer Part NoVS-C20ET07T-M3
Order Code3534743
Technical Datasheet
Product Range-
Diode ConfigurationSingle
Repetitive Peak Reverse Voltage650V
Average Forward Current20A
Total Capacitive Charge68nC
Diode Case StyleTO-220AC
No. of Pins2 Pin
Operating Temperature Max175°C
Diode MountingThrough Hole
Qualification-
Product Overview
VS-C20ET07T-M3 is a SiC merged PIN Schottky diode. It is designed for high performance and ruggedness. Optimum choice for high-speed hard switching and efficient operation over a wide temperature range, it is also recommended for all applications suffering from Silicon ultrafast recovery behaviour. Typical applications include AC/DC PFC and DC/DC ultra high-frequency output rectification in FBPS and LLC converters.
- Majority carrier diode using schottky technology on SiC wide band gap material
- Positive VF temperature coefficient for easy paralleling
- Virtually no recovery tail and no switching losses
- Temperature invariant switching behaviour
- MPS structure for high ruggedness to forward current surge events
- Meets JESD 201 class 1A whisker test
- Solder bath temperature 275°C maximum, 10s per JESD 22-B106
- Peak repetitive reverse voltage is 650V (TA = 25°C)
- Single circuit configuration
- 2L TO-220AC package, operating junction and storage temperature range from -55 to +175°C
