0690700000
Wire Ferrule, Single Wire, 20 AWG, 0.5 mm², 8 mm, Orange

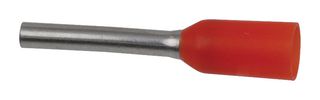

Image is for illustrative purposes only. Please refer to product description.
ManufacturerWEIDMULLER
Manufacturer Part No0690700000
Order Code2579733
Also Known AsH0,5/14 OR
Your Part Number
Technical Datasheet
231 In Stock
35 more incoming. You can reserve stock now
140 Delivery in 3-4 Business Days(SG stock)
91 Delivery in 5-6 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY209.920 (CNY237.2096) |
| 10+ | CNY203.660 (CNY230.1358) |
| 25+ | CNY194.870 (CNY220.2031) |
| 100+ | CNY192.230 (CNY217.2199) |
| 250+ | CNY185.990 (CNY210.1687) |
| 500+ | CNY182.280 (CNY205.9764) |
Price for:Pack of 500
Minimum: 1
Multiple: 1
CNY209.92 (CNY237.21 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerWEIDMULLER
Manufacturer Part No0690700000
Order Code2579733
Also Known AsH0,5/14 OR
Technical Datasheet
Wire Ferrule TypeSingle Wire
Wire Size AWG Max20AWG
Conductor Area CSA0.5mm²
Pin Length8mm
Insulator ColourOrange
Product Range-
Overall Length14mm
Insulator MaterialPP (Polypropylene)
Terminal MaterialCopper
Terminal PlatingTin
SVHCNo SVHC (23-Jan-2024)
Product Overview
The 0690700000 is a 14mm Orange Insulated Wire End Ferrule with 2.6mm collar diameter, 10mm stripping length and 20AWG wire cross section area. The use of H0,5/14 OR wire end ferrules ensures that users get electrical connections of long-lasting, consistent quality.
- 0.5mm² Conductor cross section
Applications
Industrial
Technical Specifications
Wire Ferrule Type
Single Wire
Conductor Area CSA
0.5mm²
Insulator Colour
Orange
Overall Length
14mm
Terminal Material
Copper
SVHC
No SVHC (23-Jan-2024)
Wire Size AWG Max
20AWG
Pin Length
8mm
Product Range
-
Insulator Material
PP (Polypropylene)
Terminal Plating
Tin
Technical Docs (1)
Alternatives for 0690700000
2 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Tariff No:85369010
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (23-Jan-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.036288
