74457115

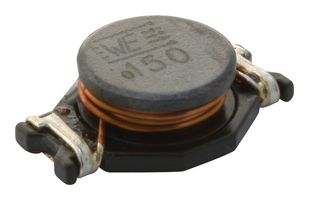

Power Inductor (SMD), 15 µH, 5 A, Unshielded, 9 A, WE-PD4 Series
Image is for illustrative purposes only. Please refer to product description.
ManufacturerWURTH ELEKTRONIK
Manufacturer Part No74457115
Order Code1636167
Product RangeWE-PD4 Series
Your Part Number
Technical Datasheet
19 In Stock
Need more?
19 Delivery in 5-6 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY17.800 (CNY20.114) |
| 10+ | CNY16.990 (CNY19.1987) |
| 25+ | CNY16.150 (CNY18.2495) |
| 50+ | CNY15.310 (CNY17.3003) |
| 100+ | CNY14.210 (CNY16.0573) |
| 250+ | CNY13.630 (CNY15.4019) |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
CNY17.80 (CNY20.11 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerWURTH ELEKTRONIK
Manufacturer Part No74457115
Order Code1636167
Product RangeWE-PD4 Series
Technical Datasheet
Inductance15µH
Inductor TypePower
RMS Current (Irms)5A
Inductor ConstructionUnshielded
Saturation Current (Isat)9A
Product RangeWE-PD4 Series
Inductor Case / Package-
DC Resistance Max0.035ohm
Inductance Tolerance± 15%
Product Length22mm
Product Width15mm
Product Height7mm
SVHCNo SVHC (25-Jun-2025)
Technical Specifications
Inductance
15µH
RMS Current (Irms)
5A
Saturation Current (Isat)
9A
Inductor Case / Package
-
Inductance Tolerance
± 15%
Product Width
15mm
SVHC
No SVHC (25-Jun-2025)
Inductor Type
Power
Inductor Construction
Unshielded
Product Range
WE-PD4 Series
DC Resistance Max
0.035ohm
Product Length
22mm
Product Height
7mm
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85045000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.00425
