760308100143

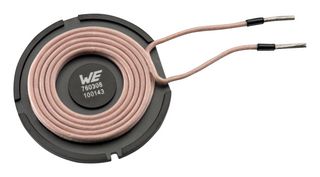

Charging Coil, Wireless, WE-WPCC Series, 6 µH, ± 10%, 0.018 ohm, 1 Coil, 1 Layer
Image is for illustrative purposes only. Please refer to product description.
ManufacturerWURTH ELEKTRONIK
Manufacturer Part No760308100143
Order Code2543252
Product RangeWE-WPCC Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 32 week(s)
Notify me when back in stock
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY140.990 (CNY159.3187) |
| 2+ | CNY139.680 (CNY157.8384) |
| 3+ | CNY138.360 (CNY156.3468) |
| 5+ | CNY137.040 (CNY154.8552) |
| 10+ | CNY135.720 (CNY153.3636) |
| 20+ | CNY134.400 (CNY151.872) |
Price for:Each
Minimum: 1
Multiple: 1
CNY140.99 (CNY159.32 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerWURTH ELEKTRONIK
Manufacturer Part No760308100143
Order Code2543252
Product RangeWE-WPCC Series
Technical Datasheet
Product RangeWE-WPCC Series
Inductance6µH
Inductance Tolerance± 10%
DC Resistance Max0.018ohm
No. of Coils1 Coil
No. of Layers1 Layer
Saturation Current (Isat)24A
Self Resonant Frequency16MHz
Quality Factor180@125kHz
AC Current Rating-
Product Length-
Product Width-
Product Height6.7mm
Inductor MountingBoard Mount
Operating Temperature Min-20°C
Operating Temperature Max105°C
SVHCNo SVHC (21-Jan-2025)
Technical Specifications
Product Range
WE-WPCC Series
Inductance Tolerance
± 10%
No. of Coils
1 Coil
Saturation Current (Isat)
24A
Quality Factor
180@125kHz
Product Length
-
Product Height
6.7mm
Operating Temperature Min
-20°C
SVHC
No SVHC (21-Jan-2025)
Inductance
6µH
DC Resistance Max
0.018ohm
No. of Layers
1 Layer
Self Resonant Frequency
16MHz
AC Current Rating
-
Product Width
-
Inductor Mounting
Board Mount
Operating Temperature Max
105°C
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85043180
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.033
