EV96B94A

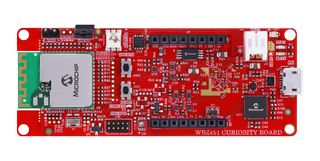

EV96B94A is a curiosity development board, based on the WBZ451PE module, and is the best development platform for evaluating the PIC32CX-BZ2 family of MCUs. It comes preconfigured with an out-of-the-box multi-protocol demo application and features a temperature sensor, a current measurement header, an RGB LED and a MikroElectronika mikroBUSTM socket to attach a plethora of sensors and add-on boards.

• WBZ451PE Bluetooth low energy and zigbee RF module, USB or Li-Po battery powered
• On-board programmer/debug circuit using PKoB4 based on Microchip SAME70 MCU
• Microchip MCP73871 Li-Ion/LiPo battery charger with power path management
• mikroBUS socket to expand functionality using MikroElectronika click adapter boards
• RGB LED connected to pulse width modulation (PWM), one reset switch
• One user-configurable switch, one user LED, 32.768KHz crystal
• Microchip SST26VF064B, 64Mbit external QSPI flash memory
• Microchip MCP9700A, low power analogue voltage temperature sensor
• 10-pin ARM serial wire debug (SWD) header for external programmer/debugger
