MA330043

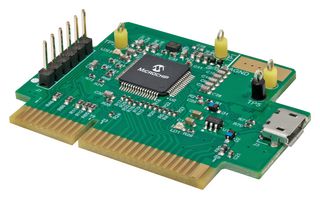

dsPIC33EP128GS806 Digital Power Plug-In Module (DP PIM) is a demonstration board that showcases the Microchip dsPIC33EP128GS806 16-Bit Digital Signal Controller (DSC) features. The DP PIM provides access to the dsPIC33EP128GS806 analogue inputs, the Digital-to-Analog Converter (DAC) outputs, the Pulse-Width Modulation (PWM) outputs and the General Purpose Input and Output (GPIO) ports.

• ICSP™ programming header (6-pin, 2.54mm header)
• On-board LDO (3.6VDC to 6.3VDC) with power good (PG) function
• Solder pad for ground connection
• Micro USB connector
• MCP2221A USB to UART/I2C serial converter
• Power indicator LED (green)
• User LED (red)
• Board edge connection interface for analogue inputs/outputs, PWM outputs and GPIO ports
• Analog input with op amp buffer via test point loop connector can be used for Bode plot measurements
• Test point loops for DAC outputs
