KITPF8200FRDMPGM

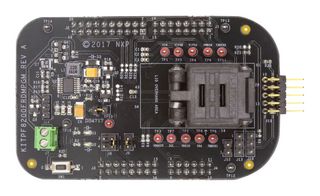

Programming board featuring a 56 pin QFN socket compatible with all PF81xx and PF82xx PMICs. It integrates a communication bridge based on the FRDM-KL25Z freedom board to communicate with the FlexGUI software interface to program the OTP configuration.

• Clamshell 56 pin QFN socket
• 5V operating input voltage range (from USB connector)
• Integrated boost converted to supply VDDOTP programming voltage
• USB to I2C communication via the FRDM-KL25Z interface
• In-line programming interface connector

内容

Assembled and tested KITPF8200FRDMPGM and pre-programmed FRDM-KL25Z MCU board in an anti-static bag, 3ft USB-STD A to USB-B-mini cable, USB to mini USB cable, Quick start guide.

警告

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
