产品信息
制造商NXP
制造商产品编号PNEV7462C
库存编号2931360
套件应用类型RF / IF
硅芯制造商NXP
硅芯号PN7462
应用系统子类型NFC控制器
套件内容评估板5x PN7462AU, 天线, 3x PCB, USB电缆, OM13054 LPC-Link2调试适配器, 软件
产品范围-
SVHC(高度关注物质)No SVHC (27-Jun-2024)
产品概述

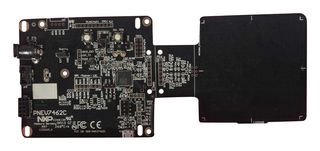

PNEV7462C board is to enable hardware and software evaluation of typical PN7462 family design and to support prototyping own antenna circuitry. The supporting NFC Cockpit tool enables antenna tuning, DPC calibration and the related TX and RX optimization in run time.
- PN7462AU circuitry with reset and download pushbuttons and power configurations
- External power supply connector (5.5/2.1 socket) and power supply selector
- Power supply status LEDs for 3.3V and 5V
- Antenna matching circuit and antenna connector
- 65 x 65mm antenna coil
- HIF (host interface) SPI, I2C and USART pins
- SWD interface (10-pin Cortex debug connector)
- GPIO header and LEDs
- USB interface - micro USB connector X3
技术规格
套件应用类型
RF / IF
硅芯号
PN7462
套件内容
评估板5x PN7462AU, 天线, 3x PCB, USB电缆, OM13054 LPC-Link2调试适配器, 软件
SVHC(高度关注物质)
No SVHC (27-Jun-2024)
硅芯制造商
NXP
应用系统子类型
NFC控制器
产品范围
-
技术文档 (1)
法律与环境
原产地：
进行最后一道重要生产流程所在的地区原产地：United States
进行最后一道重要生产流程所在的地区
进行最后一道重要生产流程所在的地区原产地：United States
进行最后一道重要生产流程所在的地区
税则号：84733020
US ECCN:EAR99
EU ECCN:NLR
RoHS 合规：是
RoHS
RoHS 邻苯二甲酸盐合规:是
RoHS
SVHC:No SVHC (27-Jun-2024)
下载产品合规证书
产品合规证书
重量（千克）：.001
