3414-6600

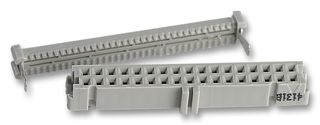

IDC连接器, IDC插座, 母, 2.54 mm, 2排, 34 触点, 电缆安装
- 制造商：
- 3M 3M
- 制造商产品编号:
- 3414-6600
- 库存编号
- 468058
- 产品范围
- 3000系列
- 也称为:
- GTIN UPC EAN: 00054007336631
- 技术数据表:
- 3414-6600 Datasheet
产品范围选择器 (3000系列)
查看全系列相关产品产品概述
The 3414-6600 is a 34-way 0.100 x 0.100-inch Wiremount Socket for 0.050-inch pitch cable, with gold-plated copper alloy contacts and IDC/IDT termination. This 3000 series socket is glass filled polyester (PBT) insulated, mates with 3M headers, plugs and pin strips for quick connect/disconnect capability. This wiremount socket has open end cover, military polarization with centerbump and no strain relief.
- Grey colour
- Open or closed end covers available
- Accepts flat cable or discrete wire
- UL94V-0 Flammability rating
- 1A Current rating
- 1 x 10⁹R at 500VDC Insulation resistance
应用
工业
警告
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
产品信息
技术文档 (2)
CAD 下载
--请选择...
✔
--请选择...
×
条款
CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.
也称为
GTIN UPC EAN: 00054007336631
685 有货 需要更多？
×
您现在可以预订货品了 订购所需的数量并按正常方式结算。目前无法交付的数量将列入延期交货订单中，并在到货后立即发货。
将于 22-5-25 再提供 960 件
交付周期内有额外库存， 交付周期大约为 23-1-30
685 UK 有库存，可在 5-6 个工作日内发货
由于市场条件的影响，交货时间仅供一般指导，可能会在短时间内发生变化
| 数量 | 价钱 (不含税) (含税) | 您所支付金额（含增值税） (不含税) |
|---|---|---|
| 10+ | CNY56.61 CNY63.97 | ( ) |
| 100+ | CNY52.44 CNY59.26 | ( ) |
| 240+ | CNY49.61 CNY56.06 | ( ) |
| 480+ | CNY42.45 CNY47.97 | ( ) |
| 1200+ | CNY41.94 CNY47.39 | ( ) |
定价不可用。 请联系客户服务。
