3421-7600

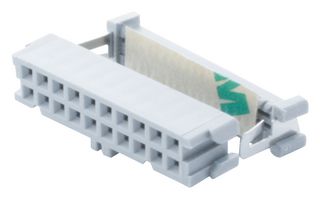

IDC连接器, IDC插座, 母, 2.54 mm, 2排, 20 触点, 电缆安装
- 制造商：
- 3M 3M
- 制造商产品编号:
- 3421-7600
- 库存编号
- 2672356
- 产品范围
- 3000 Series
- 也称为:
- GTIN UPC EAN: 00054007336532 80610121073
- 技术数据表:
- 3421-7600 Datasheet
产品范围选择器 (3000 Series)
查看全系列相关产品产品概述
The 3421-7600 is a 20-way 2-row 0.100 x 0.100-inch Wire-to-board Socket for 0.050-inch pitch cable with gold-plated copper contacts. This 3000 series socket comes with glass filled polyester (PBT) insulation and accommodates 28/26AWG solid and stranded wire. It has closed end cover (for end cable termination), military polarization with centerbump and no strain relief. The wire mount socket mates with 3M headers, plugs and pin strips for quick connect/disconnect capability. Transfer adhesive on covers provides precision alignment between connector and cables resulting in high yield terminations.
- Grey color
- Industry standard IDC socket
- Positive locking metal "J" clips provide high cover retention
- Accepts flat cable or discrete wire
- UL94V-0 Flammability rating
- 1A Current rating
- >1 x 10⁹R at 500VDC Insulation resistance
应用
工业
产品信息
技术文档 (1)
CAD 下载
--请选择...
✔
--请选择...
×
条款
CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.
也称为
GTIN UPC EAN: 00054007336532 80610121073
可延期交货
由于市场条件的影响，交货时间仅供一般指导，可能会在短时间内发生变化
| 数量 | 价钱 (不含税) (含税) | 您所支付金额（含增值税） (不含税) |
|---|---|---|
| 10+ | CNY30.56 CNY34.53 | ( ) |
| 25+ | CNY28.94 CNY32.70 | ( ) |
| 40+ | CNY28.27 CNY31.95 | ( ) |
| 80+ | CNY26.92 CNY30.42 | ( ) |
| 300+ | CNY23.56 CNY26.62 | ( ) |
| 600+ | CNY22.88 CNY25.85 | ( ) |
| 1200+ | CNY19.52 CNY22.06 | ( ) |
| 2400+ | CNY18.17 CNY20.53 | ( ) |
定价不可用。 请联系客户服务。
