4634-6000

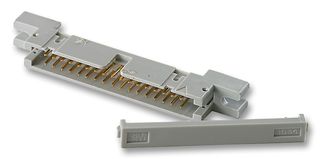

IDC连接器, 带接线片, IDC插头, 公, 2.54 mm, 2排, 34 触点, 电缆安装
- 制造商：
- 3M 3M
- 制造商产品编号:
- 4634-6000
- 库存编号
- 469180
- 产品范围
- 4600系列
- 也称为:
- GTIN UPC EAN: 00054007357087
- 技术数据表:
- 4634-6000 Datasheet
产品范围选择器 (4600系列)
查看全系列相关产品产品概述
The 4634-6000 is a 50-way 2-row 0.100 x 0.100-inch Wire-to-board Plug for 0.050-inch pitch cable with gold-plated copper alloy contacts. The 4600 series connector comes with a glass filled polyester (PBT) insulator and accommodates 28/26AWG solid and stranded wire. It has mounting flange (standard, RIA E1 & C1 apply), open end cover (daisy chaining/bussing - standard) and military polarization (with 3518 polarizing key) for 40 contacts. The wiremount plug has been shrouded to protect against physical and chemical pin damage.
- Accepts flat cable or discrete wire
- No latch
- Gray color
- UL94V-0 Flammability rating
- 1A Current rating
- >1 x 10⁹R at 500VDC Insulation resistance
应用
工业, 国防, 军用与航空
产品信息
技术文档 (1)
CAD 下载
--请选择...
✔
--请选择...
×
条款
CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.
也称为
GTIN UPC EAN: 00054007357087
494 有货 需要更多？
×
您现在可以预订货品了 订购所需的数量并按正常方式结算。目前无法交付的数量将列入延期交货订单中，并在到货后立即发货。
交付周期内有额外库存， 交付周期大约为 22-6-27
494 US 有库存，可在 5-6 个工作日内发货
由于市场条件的影响，交货时间仅供一般指导，可能会在短时间内发生变化
| 数量 | 价钱 (不含税) (含税) | 您所支付金额（含增值税） (不含税) |
|---|---|---|
| 1+ | CNY77.33 CNY87.38 | ( ) |
| 10+ | CNY70.36 CNY79.51 | ( ) |
| 25+ | CNY63.32 CNY71.55 | ( ) |
| 100+ | CNY59.77 CNY67.54 | ( ) |
| 280+ | CNY55.68 CNY62.92 | ( ) |
