1U30S-MB2-SA1-400

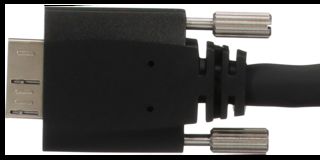

7010684773 is an 1U30S series USB3 vision® industrial camera cable assembly. It is a cable assembly with USB Type A and USB Micro B for connecting cameras to control units. This 1U30S series is a cable designed for repetitive bending motion uses. 1U30S series USB3 vision® cable assembly serve a wide range of industries such as industrial automation, medical imaging, professional audio visual, and data transfer and storage. Moveable cable has excellent U-shaped sliding durability and maintains the same high transmission characteristics as the initial one even after sliding.

• 4m length, black colour
• Straight flexible cable, with out locking screw
• Repetitive motion application
• Excellent transmission up to at least 5m
• Repeated bending durability is greater than 10 million cycles
• USB3 Vision® compatible
• USB 3.0 super speed data transfer up to 5Gbps
• High transmission characteristics
• Suitable for high-flexibility connecting, high-speed connecting, high-speed data transmission
• Thin connector (STD-A) for tight space

注释

This is Non-Splice Free Cable. The entire cable length of one packaging unit is achieved by several cable sections without a continuous electrical & mechanical connection.
