GEN4-4DCAPE-50CT-CLB

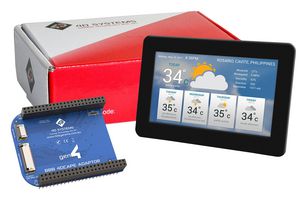

BeagleBone Black电路板, LCD, 5英寸, 电容式触摸屏, 带盖透镜挡板
产品信息
技术文档 (1)
CAD 下载
--请选择...
✔
--请选择...
×
条款
CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.
产品概述
电容式触摸Gen4 LCD CAPE模块, 带盖透镜嵌框 (CLB), 5英寸主TFT显示屏。该模块的电容式触摸屏由Focaltech电容式触摸控制器控制, 采用I2C协议连接显示器和Beagle Bone Black (BBB)。Beagle Bone Black (BBB) 采用30路FFC带状电缆直接连接至适配器板。LCD CAPE需要电源和显示器信号, BBB通过适配器和FFC带状电缆传输电源和信号。
- 4DCAPE与Beagle Bone White不兼容, 但可兼容Beagle Bone Black。
- 800 x 480分辨率
- 通过DIP开关选择EEPROM CAPE ID
- 与以前的4DCAPE型号的模拟接口相比, 具有明显的改进
应用
嵌入式设计与开发
内容
gen4-4DCAPE-50CT模块, gen4-4DCAPE适配器, 30路FFC电缆。
