A1220EUA-T

霍尔效应开关, 锁定开关, 锁定式, 22 G, -23 G, 3 V, 24 V, SIP

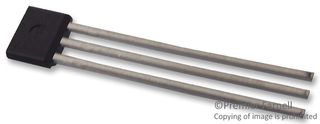

ALLEGRO MICROSYSTEMS A1220EUA-T
×

图片仅用于图解说明,详见产品说明。

制造商产品编号:
A1220EUA-T
库存编号
1698206
技术数据表:
A1220EUA-T   数据表
查看所有技术文档

产品概述

The A1220EUA-T is a chopper stabilized precision hall effect latch in 3 pin SIP package. This extremely temperature stable and stress resistant device is especially suited for operation over extended temperature ranges to 150°C. Superior high temperature performance is made possible through dynamic offset cancellation which reduces residual offset voltage which is normally caused by device overmoulding, temperature dependencies and thermal stress. The A1220 includes voltage regulator, hall voltage generator, small signal amplifier, chopper stabilization, schmitt trigger and short circuit protected open drain output to sink up to 25mA. A south pole of sufficient strength turns the output on and north pole of sufficient strength is necessary to turn the output off. An onboard regulator permits operation with supply voltages of 3V to 24V.
  • Automotive grade AEC-Q100 qualified
  • Symmetrical latch switchpoints
  • Chopping frequency (fc) of 800KHz
  • Operate point (BOP) of 22G, release point (BRP) of -23G and hysteresis (BHYS) of 45G
  • Resistant to physical stress
  • Superior temperature stability
  • Output short circuit protection and reverse battery protection
  • Operation from unregulated supply down to 3V
  • Solid state reliability
  • Operating ambient temperature range from -40°C to 85°C

应用

传感与仪器, 车用

警告

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

产品信息

想要查看类似产品?只需在下方选择所需属性并点击按钮 ×


:
锁定式

:
22G

:
-23G

:
3V

:
24V

:
SIP

:
3引脚

:
-

:
-

:
-

查找类似产品 选择并修改以上属性即可查找类似产品。

技术文档 (3)

7,378 有货 需要更多?

7,378 英国 有库存,可在 5-6 个工作日内发货

由于市场条件的影响,交货时间仅供一般指导,可能会在短时间内发生变化

CNY10.06 ( 不含税  ) CNY11.3678 ( 含税 )
