产品概述

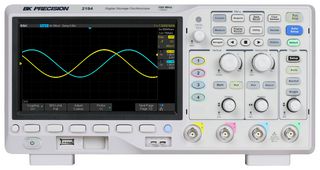

BK2194 digital storage oscilloscope provides 100MHz of bandwidth in a 4-channel configuration with a maximum sample rate of 1GSa/s and a maximum memory depth of 14Mpts. The BK2194 comes equipped with a 7" widescreen display and extensive features including segmented acquisition, FTT and serial decoding for five different communication protocols. This model is the ideal solution for educational settings and hobbyists.
- Waveform capture rates up to 100,000 (normal mode) and 400,000 (sequence mode) waveforms per second
- Versatile triggering capabilities including pulse width, line-selectable video and serial
- Segmented acquisition stores up to 80,000 frames
- Serial decoding for I2C, SPI, UART, CAN and LIN protocols
- FFT feature and 7 additional math operations
- Masking tool with adjustable limits for pass/fail testing
- LAN and USBTMC compliant device ports for PC connectivity
- USB host port for saving and recalling waveform setups, data, and screenshots
- USBTMC-compliant device port and LAN interfaces standard
- Multi-language support
内容
Digital storage oscilloscope, Power cord, USB cable, Four passive probes, Certificate of calibration.
技术规格
产品范围
-
带宽
100MHz
显示存储深度
14 Mpts
示波器显示类型
TFT彩色液晶屏
制造商保修
3年
SVHC(高度关注物质)
No SVHC (07-Nov-2024)
示波器通道
4 通道
采样率
1GSPS
计算上升时间
3.5ns
套件内容
数字存储示波器,电源线,USB电缆,无源探头,校准证书
插头类型
-
BK2194 的替代之选
找到 2 件产品
相关产品
找到 8 件产品
法律与环境
原产地:
进行最后一道重要生产流程所在的地区原产地:China
进行最后一道重要生产流程所在的地区
进行最后一道重要生产流程所在的地区原产地:China
进行最后一道重要生产流程所在的地区
税则号:90302000
US ECCN:3A992.a
EU ECCN:NLR
RoHS 合规:Y-Ex
RoHS
RoHS 邻苯二甲酸盐合规:是
RoHS
SVHC:No SVHC (07-Nov-2024)
下载产品合规证书
产品合规证书
重量(千克):3.7
