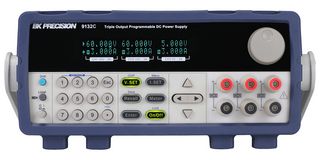

BK9132C

9130C series s triple output linear programmable DC power supply. It feature isolated outputs that can be adjusted independently or combined in series or parallel to output higher voltage or current. Additionally it can operate in tracking mode with user-configurable ratios between channels. It is suitable for a wide range of applications including production testing, telecommunications, R&D, electronic service and labs.

• 0 to 60V (Ch1 & Ch2), 0 to 5V (Ch3) voltage and 0 to 3A (Ch1, Ch2 & Ch3) current
• Three independent and electrically isolated outputs
• Displays voltage and current settings for all three channels simultaneously
• Low noise, linear regulation
• High programming and readback resolution of 1mV / 1mA
• Series and parallel modes combine channels to increase the output voltage or current
• Store and recall up to 36 instrument settings
• Remote sense, overvoltage (OVP) and overtemperature (OTP) protection including keylock function
• Fully programmable channels with output on/off control
• Standard USB (USBTMC-compliant) and RS232 interfaces supporting SCPI commands for remote control

内容

DC power supply, Power cord, Instruction manual, Certificate of calibration.
