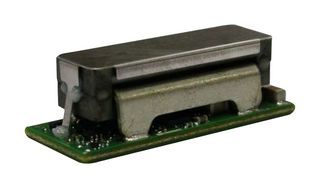

SLAN-40E1ALR

SLAN-40E1ALR is a non-isolated DC-DC converter that can deliver up to 40A of output current. Features include remote On/Off, adjustable output voltage, over current and overtemperature protection. The module also includes the tunable loop feature that allows the user to optimize the dynamic response of the converter to match the load with reduced amount of output capacitance leading to savings on cost and PWB area.

• Input voltage range from 4.5 to 14VDC, output voltage ranges from 0.6 to 2.0VDC, efficiency of 91.5%
• Power good signal
• Output voltage programmable from 0.6VDC to 2VDC via external resistor
• Wide operating temperature range [-40°C to 85°C]
• Cost efficient open frame design
• Ability to sink and source current
• UL 60950-1, CSA C22.2 No. 60950-1-07 certified, and VDE (EN60950-1 2nd Ed.) licensed
• Small size : 33.02 x 13.46 x 10.9mm
• Fixed switching frequency with capability of external synchronization
