9222 004500

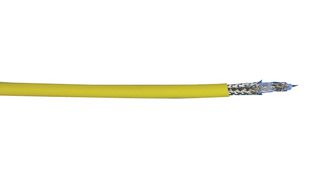

三轴电缆, 双编织屏蔽, RG58A, 20 AWG, 7 x 0.32mm, 50 ohm, 498.69 ft, 152.4 m

BELDEN 9222 004500
×

图片仅用于图解说明,详见产品说明。

制造商:
BELDEN BELDEN
制造商产品编号:
9222 004500
库存编号
596190
查看所有技术文档

产品信息

想要查看类似产品?只需在下方选择所需属性并点击按钮 ×


:
RG58A

:
20AWG

:
7 x 0.32mm

:
50ohm

:
498.69ft

:
152.4m

:
6.1mm

:
镀锡铜

:
黄色

:
PVC(聚氯乙烯)

:
-

:
-

查找类似产品 选择并修改以上属性即可查找类似产品。

技术文档 (1)

CAD 下载

×

条款

CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.

接受 取消

产品概述

The 9222 004500 is a 500ft 1-conductor RG-58A/U Triaxial Cable with 20AWG stranded (7 x 28) tinned copper conductor, polyethylene insulation, double tinned copper braid shields (95% coverage) and yellow PVC jacket. Triax offers an additional layer of insulation and a second shield. This outer shield allows for the advantage of multiplexing the signal. Triax cable is not only able to work as a signal conductor, but as a power conductor as well. For this reason, the most common uses are for interconnecting video cameras to respective equipment enabling for the control and signal of the unit all in one cable.
  • CPR: Fca
  • 50R Impedance
  • 30.8pF/ft Conductor to shield nominal capacitance
  • 9.5R/1000ft at 20°C Nominal conductor DC resistance
  • 4.7R/1000ft at 20°C Nominal inner shield DC resistance
  • 4.3R/1000ft at 20°C Nominal outer shield DC resistance

应用

信号处理

35 有货 需要更多?

35 UK 有库存,可在 4-5 个工作日内交货

CNY6,325.96 ( CNY7,148.33  含增值税)

定价不可用。 请联系客户服务

包装规格:
卷 152
多件: 1 最低: 1
数量 单价(含增值税) 您所支付金额(含增值税)


1+ CNY6,325.96 (CNY7,148.33)
优惠价格
合约价格
仅限网络价格
仅限网络合约价格
  ( )
5+ CNY6,174.73 (CNY6,977.44)
优惠价格
合约价格
仅限网络价格
仅限网络合约价格
  ( )
10+ CNY6,023.50 (CNY6,806.56)
优惠价格
合约价格
仅限网络价格
仅限网络合约价格
  ( )
25+ CNY5,903.03 (CNY6,670.42)
优惠价格
合约价格
仅限网络价格
仅限网络合约价格
  ( )
