9452 010500

多芯电缆, 屏蔽, 2 芯, 24 AWG, 0.239 mm², 500 ft, 152.4 m

BELDEN 9452 010500
×

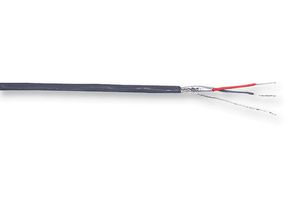

图片仅用于图解说明,详见产品说明。

制造商:
BELDEN BELDEN
制造商产品编号:
9452 010500
库存编号
1467108
查看所有技术文档

产品信息

想要查看类似产品?只需在下方选择所需属性并点击按钮 ×


:
屏蔽

:
2芯

:
24AWG

:
0.239mm²

:
500ft

:
152.4m

:
黑色

:
19 x 0.127mm

:

:
PVC(聚氯乙烯)

:
3.429mm

:
200V

:
-

查找类似产品 选择并修改以上属性即可查找类似产品。

技术文档 (1)

CAD 下载

×

条款

CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.

接受 取消

产品概述

The 9452 010500 is a 2-conductor Shielded Cable with 24AWG stranded high conductivity tinned copper conductors and a high density polyethylene insulation. The 9452 series multi-conductor low-impedance cable comes with Beldfoil® aluminum foil-polyester tape outer shield, a 24AWG stranded tinned copper outer shield drain wire and a black PVC outer jacket. Belden multi-conductor cable delivers low voltage analog data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms. The Belden meets the demand for shielding technology with innovative designs in foil like the Beldfoil®, for highly effective EMI and RFI protection and 100% shield coverage for improved protection against radiated emissions and ingress at audio and radio frequencies. The Beldfoil® shield is lightweight, strong, flexible and thin, yet extremely effective.
  • CPR: Not Yet Qualified
  • 78.733N Maximum recommended pulling tension
  • 0.59058µH/m Nominal inductance
  • 98.43pF/m Nominal capacitance conductor to conductor
  • 82.025R/km Nominal conductor DC resistance (DCR)

应用

通信与网络, 自动化与过程控制, 计量, 安全, 工业, 计算机和计算机周边, 传感与仪器, 音频

畅销品

6 有货 需要更多?

6 US 有库存,可在 4-5 个工作日内交货

CNY3,571.79 ( CNY4,036.12  含增值税)

定价不可用。 请联系客户服务

包装规格:
卷 152
多件: 1 最低: 1
数量 单价(含增值税) 您所支付金额(含增值税)


1+ CNY3,571.79 (CNY4,036.12)
