9534.00153

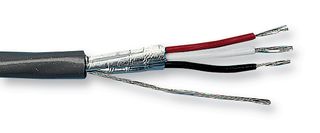

The 9534.00153 is a 498.69ft 4-conductor Computer Cable with 24AWG stranded (7 x 32) tinned copper conductors, PVC insulation, overall Beldfoil® aluminium foil-polyester tape shield (100% coverage) and chrome PVC jacket. Belden multi-conductor cable deliver low voltage analog data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms. This computer cable is designed for EIA RS-232 applications.

• CPR: Eca
• 33pF/ft Conductor to conductor nominal capacitance
• 65pF/ft Conductor to other conductor and shield nominal capacitance
• 25Ω/1000ft at 20°C Nominal conductor DC resistance
• 18Ω/1000ft at 20°C Nominal outer shield DC resistance
• UL1685 FT4 Loading flame tested
