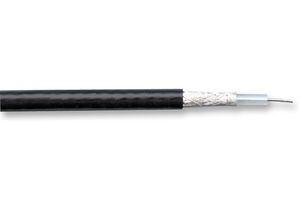

MRG1791.00100

The MRG1791.00100 is a 328ft RG179 Coaxial Cable with silver-plated copper cladded steel inner conductor, solid PE dielectric, tinned copper braid and PVC sheath. This coaxial communication cable based on MIL-C-17. This coaxial cable is perhaps the most common, basic and easy-to-understand cables. Basically, they are used to transmit electrical energy or signals, from one location to another, to connect a source to a load, such as a transmitter to an antenna. Coaxial cable (coax) is typically identified or classified according to its impedance or RG-type. Belden® coaxial cable is tested with equipment that simulates every known environmental and electrical performance condition. As a result, this cable can be counted on for positive, reliable and trouble-free operation.

• CPR: Fca
• ≤802Ω/km DC resistance inner conductor
• 67 ±3pF/m Capacitance
• -25 to +70°C Operating temperature range
