BCM957508-P1200G
网络接口卡，200Gbps，1 端口，PCI Express
11 有货
需要更多？
11 件可于 5-6 个工作日内送达(英国 库存)
| 数量 | 价钱 (含税) |
|---|---|
| 1+ | CNY9,872.150 (CNY11,155.5295) |
包装规格：每个
最低: 1
多件: 1
CNY9,872.15 (CNY11,155.53 含税)
添加部件编号/注释行
此订单的信息已添加到您的订单确认邮件、发票和发货通知中。
该代码将添加到订单确认、发票、发货通知、订单确认电子邮件和产品标签中。
产品信息
制造商BROADCOM
制造商产品编号BCM957508-P1200G
库存编号4539811
技术数据表
网络接口QSFP56, PCI Express
产品范围-
SVHC(高度关注物质)No SVHC (27-Jun-2024)
产品概述

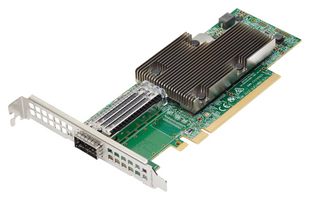

BCM957508-P1200G is a single-port 200Gb/s QSFP56 Ethernet PCI Express 4.0 x16 network interface card. It supports QSFP56/QSFP28/QSFP+ optical modules and copper direct-attach cables. The card uses the Broadcom BCM57508 200GbE MAC controller with an integrated single-channel 200GbE SFI transceiver. It is ideal for data centres or cloud computing.
- Industry’s most secure PCIe adapter solution leveraging Broadcom’s BroadSAFE® technology
- Multi-host support: dual-host x8 mode, fully compliant with the SFF-8402 standard
- x16 PCI Express 4.0 compliant, SR-IOV with up to 1k virtual functions (VFs)
- Function-level reset (FLR) support, TruFlow™ flow processing engine
- Virtual network termination – VXLAN, NVGRE, Geneve, GRE encap/decap
- vSwitch acceleration, tunnel-aware stateless offloads, DCB support – PFC, ETS, QCN, DCBx
- RDMA over converged Ethernet (RoCE), network controller sideband interface (NC-SI)
- TCP, UDP, and IP checksum offloads, large send offload (LSO), large receive offload (LRO)
- TCP segmentation offload (TSO), receive-side scaling (RSS), transmit-side scaling (TSS)
- VLAN insertion/removal, interrupt coalescing, network boot-PXE, UEFI
技术规格
网络接口
QSFP56, PCI Express
SVHC(高度关注物质)
No SVHC (27-Jun-2024)
产品范围
-
法律与环境
原产地：
进行最后一道重要生产流程所在的地区原产地：Vietnam
进行最后一道重要生产流程所在的地区
进行最后一道重要生产流程所在的地区原产地：Vietnam
进行最后一道重要生产流程所在的地区
税则号：85176200
US ECCN:5A992.c
EU ECCN:NLR
RoHS 合规：是
RoHS
RoHS 邻苯二甲酸盐合规:稍后通知
SVHC:No SVHC (27-Jun-2024)
下载产品合规证书
产品合规证书
重量（千克）：.000001
