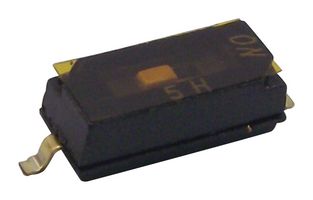

TDA01H0SB1R

The TDA01H0SB1R is a 1-pole surface-mount DIP Switch features half-pitch ultra-miniature and bifurcated contact for increased electrical reliability. Process sealed for surface mount soldering and washable processing. Suitable for use with hand-held electronic devices, portable computer and electronic devices and instrumentation controls applications.

• 1000 Cycles mechanical and electrical life
• 100mΩ Maximum contact resistance
• 100MΩ Minimum insulation resistance at 100VDC
• 300VAC Minimum dielectric strength
• 4.9N Maximum operating force
• UL94V-0 Flammability rated PPS case and cover
• UL94V-0 Flammability rated LCP actuator
• Copper alloy with gold plate over nickel plate contacts
• Copper alloy with gold flash over nickel plate terminals
• -40 to 85°C Operating temperature
