CSM30530D

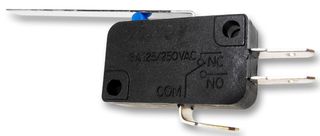

The CSM30530D is a V3 type microswitch from CamdenBoss, designed for precision switching in industrial and electronic applications. It features a long lever actuator for enhanced versatility and a durable PBT housing for reliable performance. The switch uses a snap-action coil spring mechanism with an SPDT (Single Pole Double Throw) contact configuration, rated for 5A at 250V AC. It includes 4.8mm quick-connect terminals for easy installation and offers an operating force of approximately 25gf. With an operating temperature range of -10°C to +105°C, the CSM30530D is UL approved and RoHS compliant, making it ideal for control panels, appliances, and automation equipment.

• Suitable for: Precision switching in industrial control panels, appliances, and automation equipment
• Actuator Type: Long lever actuator
• Contact Configuration: SPDT (Single Pole Double Throw)
• Electrical Rating: 5A at 250V AC
• Insulation Voltage: 500V
• Operating Force: Approx. 25gf
• Protection Rating: IP40 (basic dust protection)
• Housing Material: PBT (Polybutylene Terephthalate) for durability and heat resistance
• Standards & Approvals: UL certified; RoHS compliant
• Temperature Range: -10°C to +105°C
• Dimensions (LxWxH): 28mm x 10mm x 16mm (Approx.)
