CP30605NX1

The FT series of true, feed through, data connectors for electrical instrumentation are perfect for developing custom I/O configurations for wall plates, rack panels, etc. The SLIMS are 19 × 35.5mm, fit within a narrow 17.15 × 22.86mm panel cut-out and use common cabling for front and back connections. No soldering and no punch terminations - just use the standard cable for that particular connector style. Mount from the front with various mounting hole options.

• Fits standard rectangular cut-out
• Various hole mounting options
• Low rear profile

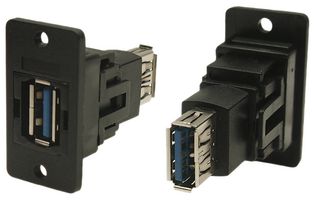

• SLIM FM USB3.0 A-A black plastic frame, Ø3.2 PLAIN holes
• ABS UL94 HB insert, polyamide UL94 V2 plastic frame, PE + PVC inner overmouldings
• Nickel plated steel shell and gold plated contacts
• 30VAC voltage rating, 1.8A maximum current rating
• Operating temperature range from -20°C to 50°C
