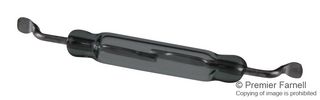

RI-60SMD1015
磁簧开关, RI-60SMD, SPST-常开, 表面安装, 500 mA, 200 VDC, 10 W
产品概述
The RI-60SMD1015 is a SPST-NO SMD Ultra-miniature Dry Reed Switch hermetically sealed in a gas-filled glass envelope. It has normally open contacts and containing two magnetically actuated reeds. The switch is of the double-ended type and may be actuated by an electromagnet, a permanent magnet or a combination of both. The device is intended for use in relays, sensors, pulse counters or similar devices.
- Ideal for ATE switching
- Contact layers gold, sputtered ruthenium
- Superior glass-to-metal seal and blade alignment
- Excellent life expectancy and reliability
- -55 to 125°C Operating temperature range
技术规格
产品范围
RI-60SMD
开关安装
表面安装
开关电压最大值
200VDC
触点电阻最大值
125µohm
接合电流, 最大
15AT
接点配置
SPST-常开
触点电流最大值
500mA
开关功率, 最大
10W
接合电流, 最小
10AT
SVHC(高度关注物质)
No SVHC (23-Jan-2024)
技术文档 (1)
法律与环境
原产地：
进行最后一道重要生产流程所在的地区原产地：Netherlands
进行最后一道重要生产流程所在的地区
进行最后一道重要生产流程所在的地区原产地：Netherlands
进行最后一道重要生产流程所在的地区
税则号：85365080
US ECCN:EAR99
EU ECCN:NLR
RoHS 合规：是
RoHS
RoHS 邻苯二甲酸盐合规:是
RoHS
SVHC:No SVHC (23-Jan-2024)
下载产品合规证书
产品合规证书
重量（千克）：.000158
